Material: Low Carbon Steel，Galvanized Steel，Stainless Steel, Aluminum，Brass.
Variety: small, medium and heavy expanded metal mesh.

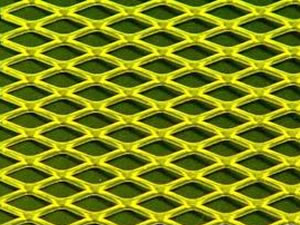

Pattern: Opening in the shape of diamond, hexagonal or special shape.
Features: The expanded metal mesh is strong and durable, with pleasing appearance in its shapes.

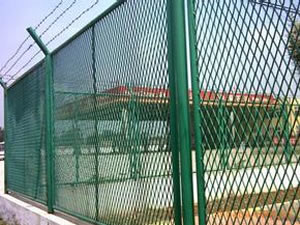

Applications: Mainly used in building cement, mechanical equipment protection, crafts manufacturing, high grade sound box nets, expressway fence, stadium fence, road fence etd.
Expanded metal mesh at length from 600-4000mm and width from 600-2000m.

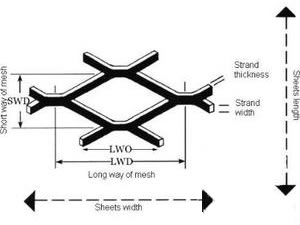

specifications | width (m) | length (m) | weight (kg/m2) | |||
mesh thickness(mm) | distance short(mm) | distance long(mm) | strip(mm) | |||
0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
